Open vSwitch

This tutorial provides a set of exercises to help you learn and teach Open vSwitch (OVS). It includes installation instructions for Ubuntu, commonly used commands, and a CLI cheat sheet.

Installation

To install Open vSwitch on Ubuntu, follow these steps:

sudo apt update
sudo apt install openvswitch-switch

Verify the installation:

sudo systemctl status openvswitch-switch

Commonly Used Commands

Here are some commonly used Open vSwitch commands:

# Show Open vSwitch version
ovs-vsctl --version

# Show current configuration
ovs-vsctl show

# List all bridges
ovs-vsctl list-br

# Add a new bridge
ovs-vsctl add-br br0

# Add a port to a bridge
ovs-vsctl add-port br0 eth0

# Delete a bridge
ovs-vsctl del-br br0

CLI Cheat Sheet

This cheat sheet provides a quick reference to the most commonly used Open vSwitch commands:

# Configuration commands
ovs-vsctl add-br <bridge>          # Create a bridge
ovs-vsctl del-br <bridge>          # Delete a bridge
ovs-vsctl add-port <bridge> <port> # Add a port to a bridge
ovs-vsctl del-port <bridge> <port> # Delete a port from a bridge

# Monitoring commands
ovs-vsctl show                     # Show current configuration
ovs-vsctl list-br                  # List all bridges
ovs-vsctl list-ports <bridge>      # List all ports on a bridge

# OpenFlow commands
ovs-ofctl show <bridge>            # Show OpenFlow information
ovs-ofctl dump-flows <bridge>      # Dump all flows on a bridge
ovs-ofctl add-flow <bridge> <flow> # Add a flow to a bridge
ovs-ofctl del-flows <bridge>       # Delete all flows on a bridge

OVS Basic Configuration

The following exercises provide hands-on practice with Open vSwitch:

Exercise 1: Basic Configuration

1. Create a new bridge named br0:

   ovs-vsctl add-br br0


2. Add a port named eth0 to the bridge br0:

   ovs-vsctl add-port br0 eth0


3. Verify the configuration:

   ovs-vsctl show


Exercise 2: OpenFlow Configuration

1. Show OpenFlow information for the bridge br0:

   ovs-ofctl show br0


2. Add a flow to the bridge br0:

   ovs-ofctl add-flow br0 "in_port=1,actions=output:2"


3. Verify the flow:

   ovs-ofctl dump-flows br0


OVS Advanced Configuration

This section provides detailed explanations for the configuration commands used in Open vSwitch (OVS) along with examples for each advanced feature.

1. Flow Monitoring and Visibility

This exercise will guide you through the process of setting up flow monitoring and visibility using Open vSwitch (OVS). You will learn how to use sFlow, NetFlow, and IPFIX to monitor network traffic and analyze flow data.

Objective: Configure flow monitoring and visibility using sFlow, NetFlow, and IPFIX on Open vSwitch.

Enabling sFlow

sFlow is a protocol for monitoring network traffic. It provides visibility into inter-VM communication and detailed traffic analysis.

1. Create a Bridge:

   ovs-vsctl add-br br0


   Explanation: This command creates a new bridge named br0.

2. Enable sFlow on the Bridge:

   ovs-vsctl -- --id=@sflow create sflow agent=eth0 target=\"192.168.1.1:6343\" \
   sampling=64 polling=10 -- set bridge br0 sflow=@sflow


   Explanation: This command creates an sFlow configuration with the specified agent, target, sampling rate, and polling interval, and then applies it to the bridge br0.

3. Verify sFlow Configuration:

   ovs-vsctl list sflow


   Explanation: This command displays the current sFlow configuration.

Enabling NetFlow

NetFlow is another protocol supported by Open vSwitch for traffic analysis.

1. Enable NetFlow on the Bridge:

   ovs-vsctl -- --id=@netflow create netflow targets=\"192.168.1.1:2055\" \
   active-timeout=60 -- set bridge br0 netflow=@netflow


   Explanation: This command creates a NetFlow configuration with the specified target and active timeout, and then applies it to the bridge br0.

2. Verify NetFlow Configuration:

   ovs-vsctl list netflow


   Explanation: This command displays the current NetFlow configuration.

Enabling IPFIX

IPFIX (IP Flow Information Export) is a protocol for exporting flow information from routers, switches, and other devices.

1. Enable IPFIX on the Bridge:

   ovs-vsctl -- --id=@ipfix create ipfix targets=\"192.168.1.1:4739\" \
   sampling=128 -- set bridge br0 ipfix=@ipfix


   Explanation: This command creates an IPFIX configuration with the specified target and sampling rate, and then applies it to the bridge br0.

2. Verify IPFIX Configuration:

   ovs-vsctl list ipfix


   Explanation: This command displays the current IPFIX configuration.

Monitoring OpenFlow Flows

OpenFlow is a protocol used by Open vSwitch to manage and control the flow of network traffic.

1. Display OpenFlow Flows:

   ovs-ofctl dump-flows br0


   Explanation: This command displays all the OpenFlow flows configured on the bridge br0.

2. Add an OpenFlow Rule:

   ovs-ofctl add-flow br0 "priority=100,in_port=1,actions=output:2"


   Explanation: This command adds an OpenFlow rule to forward traffic from port 1 to port 2.

3. Verify the OpenFlow Rule:

   ovs-ofctl dump-flows br0


   Explanation: This command displays the current OpenFlow rules on the bridge br0.

Using OVS-DPCTL for Datapath Monitoring

The ovs-dpctl command is used to monitor and manage Open vSwitch datapaths.

1. Display Datapath Statistics:

   ovs-dpctl show


   Explanation: This command displays statistics for all datapaths.

2. Display Port Statistics:

   ovs-ofctl dump-ports br0


   Explanation: This command displays statistics for all ports on the bridge br0.

This exercise demonstrates how to set up flow monitoring and visibility using sFlow, NetFlow, and IPFIX on Open vSwitch. By following these steps, you can effectively monitor network traffic and analyze flow data to gain insights into network performance and behavior.

2. Link Aggregation

LACP (IEEE 802.1AX-2008): Link Aggregation Control Protocol allows for the bundling of multiple physical links into a single logical link to increase bandwidth and provide redundancy.This exercise will guide you through the process of setting up link aggregation with LACP (Link Aggregation Control Protocol) using Open vSwitch (OVS). You will learn how to configure LACP to aggregate multiple network interfaces into a single logical link to increase bandwidth and provide redundancy.

Objective: Configure link aggregation with LACP on Open vSwitch to combine multiple network interfaces into a single logical link.

Prerequisites

Before starting, ensure you have the following:

• Open vSwitch installed on your system.

• Two or more network interfaces available for aggregation.

• A switch that supports LACP.

Configuring the Switch for LACP (OPTIONAL)

1. Access the Switch Configuration:

   Access the CLI of your switch and configure the ports for LACP. The exact commands may vary depending on your switch model.

   Example for a Dell switch:

   S4048-ON-sw#config t
   S4048-ON-sw(conf)#int range te1/2,te1/7
   S4048-ON-sw(conf-if-range-te-1/2,te-1/7)#port-channel-protocol lacp
   S4048-ON-sw(conf-if-range-te-1/2,te-1/7-lacp)#port-channel 1 mode active
   S4048-ON-sw(conf-if-range-te-1/2,te-1/7-lacp)#end


   Explanation: These commands configure the switch ports te1/2 and te1/7 for LACP and create a port channel in active mode.

Configuring Open vSwitch for LACP

1. Create a Bridge:

   ovs-vsctl add-br br0


   Explanation: This command creates a new bridge named br0.

2. Add Ports to the Bridge:

   ovs-vsctl add-port br0 eth1
   ovs-vsctl add-port br0 eth2


   Explanation: These commands add the network interfaces eth1 and eth2 to the bridge br0.

3. Configure LACP on the Ports:

   ovs-vsctl set port eth1 lacp=active
   ovs-vsctl set port eth2 lacp=active


   Explanation: These commands enable LACP in active mode on the ports eth1 and eth2.

4. Create a Bond with LACP:

   ovs-vsctl add-bond br0 bond0 eth1 eth2 -- set port bond0 \
   lacp=active -- set port bond0 bond_mode=balance-tcp


   Explanation: This command creates a bond named bond0 on the bridge br0 using the interfaces eth1 and eth2, sets LACP to active mode, and configures the bond mode to balance-tcp.

Verifying the Configuration

1. Check the Bridge Configuration:

   ovs-vsctl show


   Explanation: This command displays the current configuration of Open vSwitch, including the bridge and bond settings.

2. Check the LACP Status:

   ovs-appctl bond/show br0


   Explanation: This command displays the status of the LACP bond on the bridge br0.

Testing the Configuration

1. Generate Traffic:

   Use a traffic generator or network testing tool to generate traffic across the aggregated link.

2. Monitor the Traffic:

   ovs-ofctl dump-ports br0


   Explanation: This command displays the traffic statistics for all ports on the bridge br0.

3. VLAN Support

• Standard 802.1Q VLAN model with trunking: This feature supports VLAN tagging and trunking, which is essential for network segmentation and isolation.

  Example: Adding a VLAN to a port

  ovs-vsctl add-br br0
  ovs-vsctl add-port br0 eth0 tag=10


  Explanation: The first command creates a new bridge named br0. The second command adds the port eth0 to the bridge br0 and assigns it to VLAN 10.

4. Multicast Support

• Multicast snooping: This feature optimizes multicast traffic by ensuring that multicast packets are only forwarded to ports that have interested receivers.

  Example: Enabling IGMP snooping

  ovs-vsctl set Bridge br0 other-config:mcast-snooping-enable=true


  Explanation: This command enables IGMP snooping on the bridge br0, which helps optimize multicast traffic by forwarding packets only to interested receivers.

5. Link and Fault Management

• BFD (Bidirectional Forwarding Detection) and 802.1ag link monitoring: These protocols provide rapid detection of link failures and help maintain network stability.

  Example: Configuring BFD

  ovs-vsctl set interface eth0 bfd:enable=true bfd:min_rx=300 \
  bfd:min_tx=300 bfd:decay_min_rx=300


  Explanation: This command enables BFD on the interface eth0 with specified minimum receive and transmit intervals, and decay minimum receive interval.

6. Spanning Tree Protocols

• STP (IEEE 802.1D-1998) and RSTP (IEEE 802.1D-2004): These protocols prevent network loops by creating a loop-free logical topology.

  Example: Enabling STP

  ovs-vsctl set Bridge br0 stp_enable=true


  Explanation: This command enables the Spanning Tree Protocol (STP) on the bridge br0, which helps prevent network loops.

7. Quality of Service (QoS)

Fine-grained QoS control: This feature allows for precise control over traffic prioritization and bandwidth allocation.This exercise will guide you through the process of setting up Quality of Service (QoS) using Open vSwitch (OVS). You will learn how to configure both ingress policing and egress traffic shaping to manage network traffic effectively.

Objective: Configure QoS on Open vSwitch to control the rate of traffic ingress and egress on network interfaces.

Prerequisites

Before starting, ensure you have the following:

• Open vSwitch installed on your system.

• Network interfaces available for QoS configuration.

Configuring Ingress Policing

Ingress policing limits the rate at which traffic is allowed to enter a network interface.

1. Add a Port to the Bridge:

   ovs-vsctl add-port br0 eth0


   Explanation: This command adds the network interface eth0 to the bridge br0.

2. Set Ingress Policing Rate and Burst:

   ovs-vsctl set interface eth0 ingress_policing_rate=1000
   ovs-vsctl set interface eth0 ingress_policing_burst=100


   Explanation: These commands set the ingress policing rate to 1000 Kbps (1 Mbps) and the burst size to 100 Kb on the interface eth0.

3. Verify Ingress Policing Configuration:

   ovs-vsctl list interface eth0


   Explanation: This command displays the current configuration of the interface eth0, including the ingress policing settings.

Configuring Egress Traffic Shaping

Egress traffic shaping controls the rate at which traffic is allowed to leave a network interface.

1. Create a QoS Policy:

   ovs-vsctl set port eth0 qos=@newqos -- --id=@newqos create qos type=linux-htb \
   other-config:max-rate=1000000000 queues:0=@q0 -- --id=@q0 create queue \
   other-config:min-rate=1000000 other-config:max-rate=5000000


   Explanation: This command sets up a QoS policy on the port eth0 with a maximum rate of 1 Gbps and creates a queue with a minimum rate of 1 Mbps and a maximum rate of 5 Mbps.

2. Verify QoS Configuration:

   ovs-vsctl list qos
   ovs-vsctl list queue


   Explanation: These commands display the current QoS and queue configurations.

Applying QoS to Specific Traffic Flows

1. Add OpenFlow Rules to Direct Traffic to Queues:

   ovs-ofctl add-flow br0 "in_port=1,actions=set_queue:0,normal"


   Explanation: This command adds an OpenFlow rule to direct traffic from port 1 to the queue with ID 0.

2. Verify OpenFlow Rules:

   ovs-ofctl dump-flows br0


   Explanation: This command displays the current OpenFlow rules on the bridge br0.

Testing the Configuration

1. Generate Traffic:

   Use a traffic generator or network testing tool to generate traffic on the interface eth0.

2. Monitor the Traffic:

   ovs-dpctl dump-ports br0


   Explanation: This command displays the traffic statistics for all ports on the bridge br0.

This exercise demonstrates how to configure Quality of Service (QoS) using Open vSwitch. By following these steps, you can effectively manage network traffic by setting ingress policing and egress traffic shaping policies.

8. Security and Tunneling

• IPsec and SSL/TLS: These protocols provide secure communication channels for OVS management and data traffic.

  Example: Configuring an IPsec tunnel

  ovs-vsctl add-port br0 ipsec0 -- set interface ipsec0 type=gre \
  options:remote_ip=192.168.1.2 options:psk=swordfish


  Explanation: This command adds an IPsec tunnel port named ipsec0 to the bridge br0, using GRE tunneling with the specified remote IP and pre-shared key.

• LISP tunneling: Locator/ID Separation Protocol (LISP) tunneling supports scalable and flexible network architectures.

  Example: Configuring a LISP tunnel

  ovs-vsctl add-port br0 lisp0 -- set interface lisp0 type=lisp \
  options:remote_ip=192.168.1.3


  Explanation: This command adds a LISP tunnel port named lisp0 to the bridge br0, using the specified remote IP.

9. OpenFlow Extensions

• Advanced flow table management: OVS extends OpenFlow capabilities with features like multiple flow tables, group tables, and meter tables for more complex flow processing.

  Example: Adding a flow with OpenFlow

  ovs-ofctl add-flow br0 "priority=100,in_port=1,actions=output:2"


  Explanation: This command adds a flow to the bridge br0 with a priority of 100, matching packets coming in on port 1 and forwarding them to port 2.

Warning

OpenFlow is obsolete and is considered to have been replaced by P4Runtime in modern SDN architectures.

OVS Programming

Open vSwitch provides a rich set of APIs for programming and automation. The following sections provides an example of how to use Python to interact with Open vSwitch. Open vSwitch provides language bindings for Python, Lua and Go. More information can be found in the Open vSwitch Language Bindings [1] and ovs Python library [2].

These exercises will help you gain hands-on experience with Open vSwitch (OVS) in real-world scenarios. They cover advanced topics such as network automation, traffic engineering, and integration with SDN controllers.

1. Automating Network Configuration with Python

Objective: Use Python to automate the configuration of Open vSwitch bridges and ports.

Warning

Before installing the required python libraries, make sure to create a virtual environment to avoid conflicts with system packages.

1. Install Required Libraries:

   sudo apt install python3-pip
   pip3 install ovs


   Explanation: This command installs the necessary Python libraries for interacting with Open vSwitch.

2. Create a Python Script:

   import subprocess

   def create_bridge(bridge_name):
      subprocess.run(["ovs-vsctl", "add-br", bridge_name], check=True)
      print(f"Bridge {bridge_name} created.")

   def add_port(bridge_name, port_name):
      subprocess.run(["ovs-vsctl", "add-port", bridge_name, port_name], check=True)
      print(f"Port {port_name} added to bridge {bridge_name}.")

   if __name__ == "__main__":
      create_bridge("br0")
      add_port("br0", "eth0")


   Explanation: This script uses the subprocess.run function to execute the ovs-vsctl commands. The check=True argument ensures that an exception is raised if the command returns a non-zero exit status, which helps in error handling. An alternative approach is to use the ovs library to interact with Open vSwitch. The library provides a higher-level interface for managing OVS and it is available as a Python package here [2]

3. Run the Script:

   python3 script.py


   Explanation: This command runs the Python script to automate the network configuration.

2. Traffic Engineering with OpenFlow

Objective: Use OpenFlow to implement traffic engineering policies in Open vSwitch.

1. Install OpenFlow Controller:

   sudo apt install openvswitch-testcontroller


   Explanation: This command installs the OpenFlow controller provided by Open vSwitch.

2. Create a Bridge and Connect to the Controller:

   ovs-vsctl add-br br0
   ovs-vsctl set-controller br0 tcp:127.0.0.1:6633


   Explanation: These commands create a bridge and connect it to the local OpenFlow controller.

3. Add OpenFlow Rules:

   ovs-ofctl add-flow br0 "priority=100,in_port=1,actions=output:2"
   ovs-ofctl add-flow br0 "priority=100,in_port=2,actions=output:1"


   Explanation: These commands add OpenFlow rules to forward traffic between ports 1 and 2.

4. Verify the Configuration:

   ovs-ofctl dump-flows br0


   Explanation: This command displays the current OpenFlow rules on the bridge br0.

3. Open vSwitch Advanced Features tutorial

Complete the Open vSwitch Advanced Features Tutorial [3].

Note

This tutorial covers multi-table processing to demonstrate advanced OpenFlow features in Open vSwitch. Further the tutorial covers group tables, and provides an example of how to use group tables to implement a MAC learning switch.

Client-Server Model: Automating OVS Network Configuration

Objective: Test advanced programming knowledge of Open vSwitch (OVS) for automating network configuration in a simple Python client-server model.

Scenario:

• One server: s1

• Two clients: c1 and c2

• Traffic from c1 to s1 should be processed normally.

• Traffic from c2 to s1 should have Quality of Service (QoS) applied.

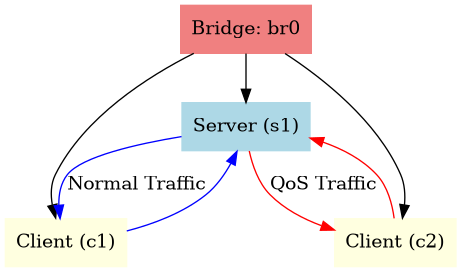

Network Topology

Requirements:

1. Install and configure Open vSwitch on the server and clients.

2. Write a Python script to automate the network configuration using OVS commands.

3. Ensure that traffic from c1 to s1 is processed normally.

4. Apply QoS to all traffic from c2 to s1.

Solution Blueprint:

  import subprocess

  def create_bridge(bridge_name):
     # Add code to create a bridge.

  def add_port(bridge_name, port_name):
     # Add code to add a port to a bridge.

  def add_openflow_rule(bridge_name, rule):
     # Add code to add an OpenFlow rule.

  def apply_qos(port_name, max_rate, min_rate):
     # Add code to apply QoS to a port.

  if __name__ == "__main__":
     # Create OVS bridge

     # Add interfaces to the bridge

     # Set up normal traffic flow from c1 to s1

     # Apply QoS to traffic from c2 to s1

     # Add flow for QoS traffic

Testing:

1. Verify the OVS bridge and ports are correctly configured.

2. Check that traffic from c1 to s1 is processed normally.

3. Ensure QoS is applied to traffic from c2 to s1 by monitoring traffic rates.

Expected Outcome:

• Traffic from c1 to s1 should flow without any QoS restrictions.

• Traffic from c2 to s1 should have QoS applied, ensuring bandwidth limits are enforced.

Virtual Network Function: Firewall

Objective: Test advanced programming knowledge of Open vSwitch (OVS) for implementing a firewall with MAC learning and Quality of Service (QoS) features.

Scenario:

The network topology includes two ports (eth0 and eth1) connected to the firewall through Open vSwitch bridge br0.

• Implement a firewall using Open vSwitch with the following features:

  • VLAN Tagging

  • MAC Learning

  • IP Routing

  • Firewall Rules

  • Quality of Service (QoS)

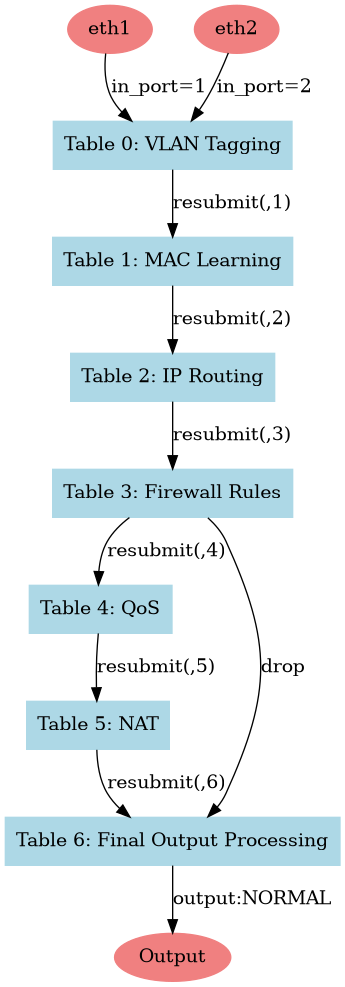

Open vSwitch Firewall

Requirements:

1. Implement VLAN tagging (Table 0) to separate traffic. Use VLAN 10 for internal traffic and VLAN 20 for external traffic.

2. Implement MAC learning (Table 1) to build a forwarding table. Use the first packet to learn the source MAC address and port.

3. Implement IP routing (Table 2) to forward packets based on IP addresses. Use the destination IP address to determine the output port.

4. Implement firewall rules (Table 3) to filter traffic. Allow traffic from internal to external networks and block traffic from external to internal networks. Further, allow HTTP traffic (port 80) and block SSH traffic (port 22).

5. Implement Quality of Service (QoS) (Table 4) to prioritize traffic from port 1 over port 2.

6. Implement Network Address Translation (NAT) (Table 5) for outbound traffic. In this case, translate the source IP address of packets from internal address (private IP) to external address (public IP).

7. Implement final output processing (Table 6) for packet forwarding.

Testing:

1. Verify bridge and port configurations using ovs-vsctl commands.

2. Use tools like ping, iperf, or hping3 to generate test traffic and verify the firewall rules.

Command Reference

Exhaustive command reference manpages are available at https://www.openvswitch.org/support/dist-docs/.

• ovs-vsctl: This tool is used for configuring the ovs-vswitchd configuration database (known as ovs-db).

• ovs-ofctl: This tool is used for administering and monitoring OpenFlow switches.

• ovs-dpctl: This tool is used to administer Open vSwitch datapaths.

• ovs-appctl: This tool is used for querying and controlling Open vSwitch daemons.

• ovs-vswitchd: This is the main Open vSwitch daemon responsible for managing the switch.

• ovsdb-server: This daemon manages the Open vSwitch database.

References

[1]

Open vSwitch Language Bindings: https://docs.openvswitch.org/en/latest/topics/language-bindings/

[2] (1,2)

ovs Python package: https://github.com/openvswitch/ovs/tree/main/python/ovs

[3]

Open vSwitch Advanced Features Tutorial: https://docs.openvswitch.org/en/latest/tutorials/ovs-advanced/
