LXC and Virtual Networking
LXC or Linux Containers is a lightweight virtualization technology that allows you to run multiple isolated Linux systems on a single host. LXC provides a way to create and manage system or application containers, which are similar to virtual machines but with less overhead. This guide provides an overview of LXC networking concepts and how to configure virtual networks for LXC containers. More information on LXC can be found in the LXC documentation.
Connecting Two LXC VMs Using TAP Devices
This guide provides detailed instructions for connecting two LXC VMs (vm1 and vm2) using TAP devices and a bridge.
1. Install LXC
First, ensure that LXC is installed on your host machine.
sudo apt update
sudo apt install lxc lxc-templates
2. Create the LXC VMs
LXC containers are created using templates. In this example, we will use the Ubuntu template to create the VMs. Other templates are available for different Linux distributions. LXC templates ship with the LXC package and can be found in the /usr/share/lxc/templates directory.
To list available templates, use the following command:
ls /usr/share/lxc/templates
In this guide, we will use the Ubuntu template to create the VMs.
Create the LXC containers for vm1 and vm2. Replace vm1 and vm2 with the names of your choice. The -t option specifies the template to use.
sudo lxc-create -n vm1 -t ubuntu
sudo lxc-create -n vm2 -t ubuntu
3. Create a Bridge on the Host
Create a bridge interface on the host to act as a virtual switch. This bridge will connect the TAP devices used by the VMs. Replace br0 with the name of your choice. The bridge interface can be created using the ip command.
sudo ip link add name br0 type bridge
sudo ip link set dev br0 up
4. Create TAP Devices for each VM
Create TAP devices for each LXC VM to connect the VMs to the bridge. Replace tap0 and tap1 with the names of your choice.
sudo ip tuntap add dev tap0 mode tap
sudo ip tuntap add dev tap1 mode tap
sudo ip link set dev tap0 up
sudo ip link set dev tap1 up
5. Add TAP Devices to the Bridge
Add the TAP devices to the bridge interface. This allows the VMs to communicate with each other through the bridge.
sudo ip link set dev tap0 master br0
sudo ip link set dev tap1 master br0
6. Configure LXC VM Network Settings
Edit the network configuration for each VM to use the TAP devices. The configuration files for LXC VMs are located in the /var/lib/lxc directory. Each VM has its own configuration file.
For VM1 (/var/lib/lxc/vm1/config):
lxc.net.0.type = veth
lxc.net.0.link = br0
lxc.net.0.flags = up
lxc.net.0.veth.pair = tap0
For VM2 (/var/lib/lxc/vm2/config):
lxc.net.0.type = veth
lxc.net.0.link = br0
lxc.net.0.flags = up
lxc.net.0.veth.pair = tap1
7. Start the LXC VMs
Start both LXC VMs.
sudo lxc-start -n vm1
sudo lxc-start -n vm2
You can check the status of the VMs using the following command:
sudo lxc-ls -f
The option -f provides detailed information about the containers.
8. Assign IP Addresses to the VMs
To login to the VMs, use the lxc-attach command.
Assign IP addresses to the network interfaces within each VM. The IP addresses should be in the same subnet to allow communication between the VMs.
For VM1:
sudo lxc-attach -n vm1
ip addr add 192.168.1.101/24 dev eth0
ip link set dev eth0 up
exit
For VM2:
sudo lxc-attach -n vm2
ip addr add 192.168.1.102/24 dev eth0
ip link set dev eth0 up
exit
9. Test Connectivity
Test the connectivity between the two VMs by pinging from one VM to the other.
From VM1:
sudo lxc-attach -n vm1
ping 192.168.1.102
From VM2:
sudo lxc-attach -n vm2
ping 192.168.1.101
Network Configuration Explanation
Bridge (
br0): Acts as a virtual switch connecting the TAP devices.TAP Devices (
tap0,tap1): Serve as virtual network interfaces for the VMs.LXC VM Configuration: Configures the VMs to use the TAP devices and assigns IP addresses for communication.
Exercises
Develop solutions for the following configurations using TUN/TAP/bridge devices on LXC containers.
Bridging using Routed Subnets

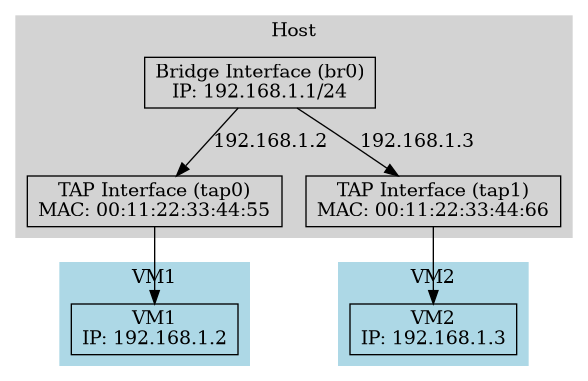

This solution should enable communication between the host and VM (bidirectional). Assign a new IP subnet to the host’s bridge interface, and do not use the subnet anywhere else. The VMs should be configured using different tap interfaces and MAC addresses. The IP of each VM should be in the same subnet as the subnet of the bridge so that the host and VMs can communicate.
![digraph G {
rankdir=TB;
node [shape=box];
subgraph cluster_host {
label = "Host";
style=filled;
color=lightgrey;
bridge [label="Bridge Interface (br0)\nIP: 192.168.1.1/24"];
tap1 [label="TAP Interface (tap0)\nMAC: 00:11:22:33:44:55"];
tap2 [label="TAP Interface (tap1)\nMAC: 00:11:22:33:44:66"];
bridge -> tap1 [label="192.168.1.2"];
bridge -> tap2 [label="192.168.1.3"];
}
subgraph cluster_vm1 {
label = "VM1";
style=filled;
color=lightblue;
vm1 [label="VM1\nIP: 192.168.1.2"];
}
subgraph cluster_vm2 {
label = "VM2";
style=filled;
color=lightblue;
vm2 [label="VM2\nIP: 192.168.1.3"];
}
tap1 -> vm1;
tap2 -> vm2;
}](../../../_images/graphviz-145f17e1f08e39625fe82c4b7621d68e46301948.png)
Bridging using Routed Subnets
Bridge using Routed Subnet, VMs connect to the Internet using Host LAN

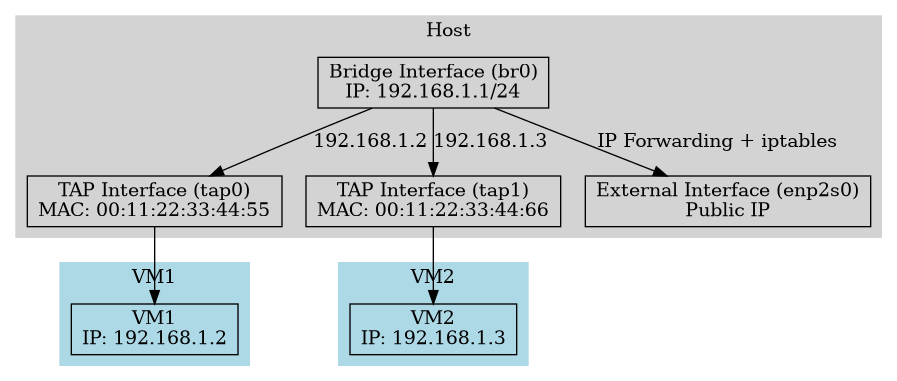

This solution should provide Internet access to the VMs. Extend the previous configuration by enabling routing (i.e., IP forwarding on the host) and use iptables to set up a rule to perform IP masquerading on packets leaving the en* interface. This allows multiple devices on the private network to share a single public IP address for outbound traffic.
![digraph G {
rankdir=TB;
node [shape=box];
subgraph cluster_host {
label = "Host";
style=filled;
color=lightgrey;
bridge [label="Bridge Interface (br0)\nIP: 192.168.1.1/24"];
tap1 [label="TAP Interface (tap0)\nMAC: 00:11:22:33:44:55"];
tap2 [label="TAP Interface (tap1)\nMAC: 00:11:22:33:44:66"];
enp [label="External Interface (enp2s0)\nPublic IP"];
bridge -> tap1 [label="192.168.1.2"];
bridge -> tap2 [label="192.168.1.3"];
bridge -> enp [label="IP Forwarding + iptables"];
}
subgraph cluster_vm1 {
label = "VM1";
style=filled;
color=lightblue;
vm1 [label="VM1\nIP: 192.168.1.2"];
}
subgraph cluster_vm2 {
label = "VM2";
style=filled;
color=lightblue;
vm2 [label="VM2\nIP: 192.168.1.3"];
}
tap1 -> vm1;
tap2 -> vm2;
}](../../../_images/graphviz-68dce47bcd86540fd63b87423ce381a83b75dd79.png)
Bridge using Routed Subnet, VMs connect to the Internet using Host LAN
Bridge to Layer 2 to connect the VM to the Host Switch with DHCP

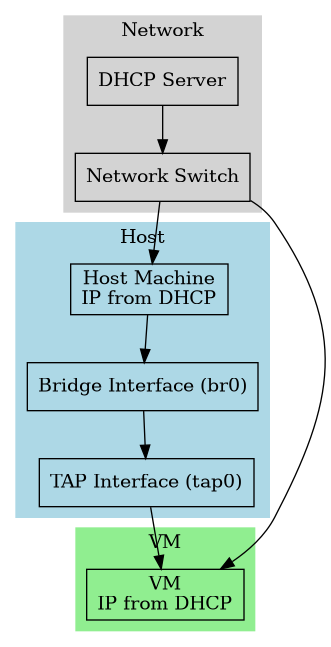

This solution connects the VM to the same network switch as the host machine. For instance, if a DHCP server is present on the network and the host machine receives its IP address from this DHCP server, the VM can also obtain an IP address from the same DHCP server. This setup is commonly used in ESXi, Xen, or HyperV VM production environments.
![digraph G {
rankdir=TD;
node [shape=box];
subgraph cluster_network {
label = "Network";
style=filled;
color=lightgrey;
dhcp [label="DHCP Server"];
switch [label="Network Switch"];
dhcp -> switch;
}
subgraph cluster_host {
label = "Host";
style=filled;
color=lightblue;
host [label="Host Machine\nIP from DHCP"];
bridge [label="Bridge Interface (br0)"];
tap1 [label="TAP Interface (tap0)"];
host -> bridge;
bridge -> tap1;
switch -> host;
}
subgraph cluster_vm {
label = "VM";
style=filled;
color=lightgreen;
vm [label="VM\nIP from DHCP"];
tap1 -> vm;
switch -> vm;
}
}](../../../_images/graphviz-10aba92726bfdf294eb9258dbec79d4467714331.png)
Bridge to Layer 2 to connect the VM to the Host Switch with DHCP
